plastic pall ring
- The product brand 米奥
- The product model
- Product description
...

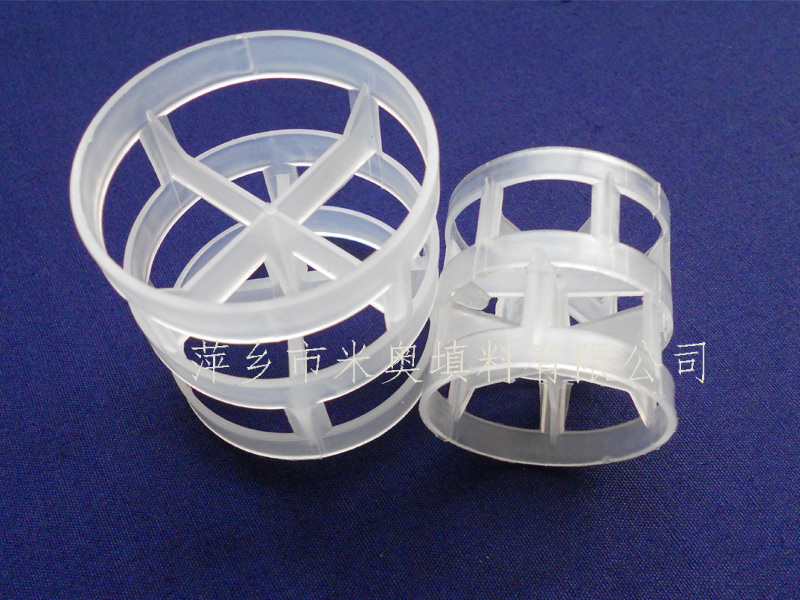

Plastic Pall Ring
Introduction: It has the characteristic of low pressure drop, large void space, large flux, high efficiency,
low energy consumption etc., Further more excellent distribution in tower packing, it is widely apply in the
separation and absorption process, device of reducing pressure.
Application: It can be applied to various of device of isolation, absorption, common decompression such
as Toluene separation , Ethylbenzene separation, Isooctane separation and desulfurization System etc.
Technical data:
Product name |
Material |
Model |
Size |
Number per volume |
Surface area |
Void |
Dry packing factor |
D×H×δ mm |
n/m3 |
m2/m3 |
% |
m-1 |
|||
Pall ring |
PP(PVC, PE, CPVC,RPP) |
Φ16 |
16×16×1 |
180000 |
188 |
91.1 |
275 |
Φ25 |
25×25×1.2 |
49000 |
175 |
90 |
239 |
||
Φ38 |
38×38×1.4 |
13600 |
155 |
89 |
220 |
||
Φ50 |
50×50×1.5 |
6300 |
93 |
90 |
127 |
||
Φ76 |
76×76×2.6 |
1830 |
73.2 |
92 |
94 |
Performance of plastic
item\material density ｇ/cm3 |
PE 0.94~0.96 |
PP 0.89~0.91 |
RPP 0.92~0.94 |
PVC 1.32~1.44 |
CPVC 1.50~1.54 |
PVDF 1.75~1.78 |
working temp. ℃ |
≤90 |
≤100 |
≤130 |
≤60 |
≤90 |
≤280 |
chemical resistance |
yes |
yes |
yes |
yes |
yes |
yes |
compress strength N/mm |
≥6.0 |
≥6.5 |
≥7.0 |
≥6.0 |
≥8.0 |
≥10.0 |
