plastic polyhedral hollow ball
Add time：2014/8/14 9:35:13 Click：
- The product brand 米奥
- The product model
- Product description
...
Product introduction

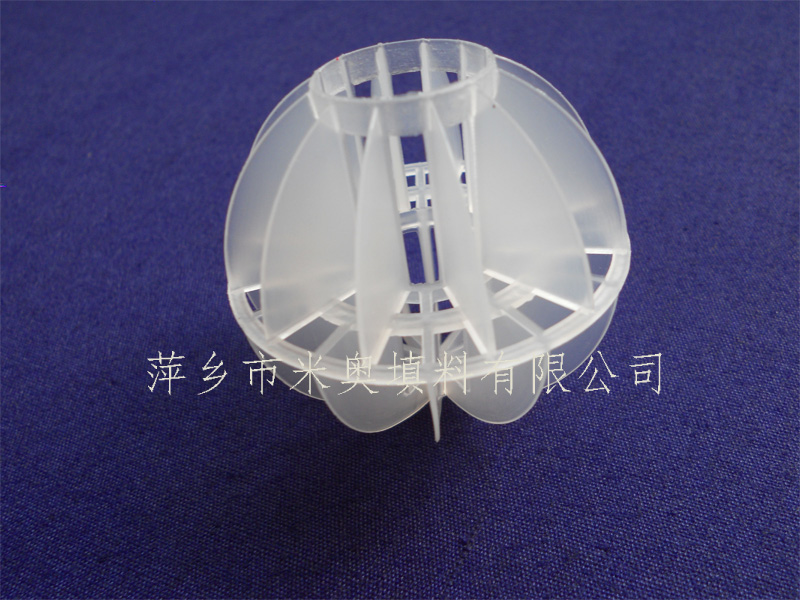

Plastic Polyhedral Hollow Ball
Introduction：It is a ball which made of two hemispheres. Every hemisphere is made of many flabellate vanes.
It is very popular in the deviation of CO2.
It is used for Absorbers, Degassing, Liquid/liquid extraction, water treatment, Heat transfer.
Technical Data:
Specification |
Number per volume |
Specific area |
Void Volume |
Dry packing factor |
D×H mm |
n/m3 |
m2/m3 |
% |
|
76 x 76 |
2600 |
150 |
92 |
193 |
50 x 50 |
10500 |
236 |
90 |
324 |
38 x 38 |
25000 |
325 |
87 |
494 |
25 x 25 |
64000 |
460 |
84 |
776 |
★ Performance of plastic
| item\material density ｇ/cm3 |
PE 0.94~0.96 |
PP 0.89~0.91 |
RPP 0.92~0.94 |
PVC 1.32~1.44 |
CPVC 1.50~1.54 |
PVDF 1.75~1.78 |
| working temp. ℃ |
≤90 |
≤100 |
≤130 |
≤60 |
≤90 |
≤280 |
| chemical resistance |
yes |
yes |
yes |
yes |
yes |
yes |
| compress strength N/mm |
≥6.0 |
≥6.5 |
≥7.0 |
≥6.0 |
≥8.0 |
≥10.0 |
