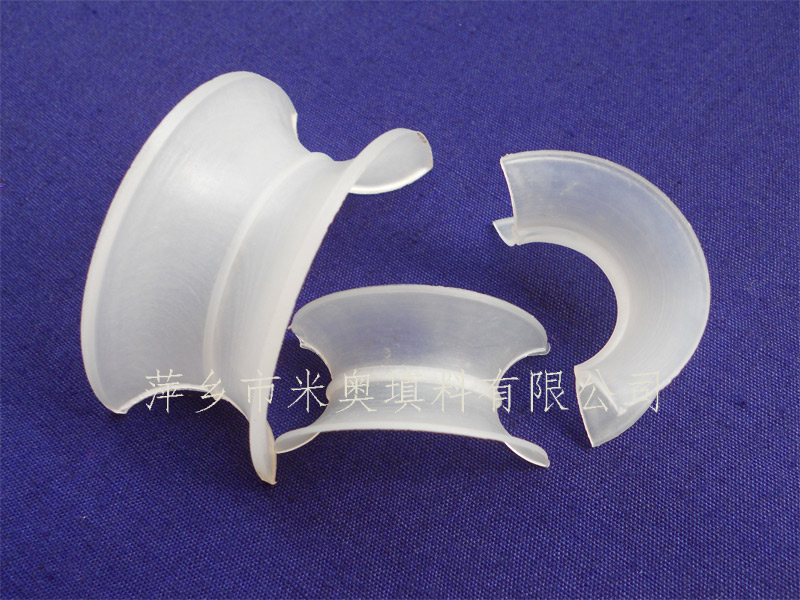

Plastic Intalox Saddle Ring



Introduction: The Plastic intalox saddle ring has big voidage, low pressure drop, low height of mass transfer unit,

 low specific weight, abundant of gasliquid contact, the excellent efficiency of transfer, the application temperature

 ranges in 60 to 150 degree. it is widely adopted in packing tower of Alkali-Chloride, petroleum, coal gas, chemical,

 environment industry etc..



Technical Data:

Material	Specification	Specific Area	Void Ratio	Number	Bulk Density	Dry Packing Factor
	D×H×δ mm	m2/m3	m3/m3	m-3	kg/m3	m-1
Plastic Saddle Ring	25×12.5×1.2	288	0.847	97680	68	473
	38×19×1.2	265	0.95	25200	57.9	405
	50×25×1.5	250	0.96	9400	56.4	332
	76×38×2.6	200	0.97	3700	59.2	289
	100×50×3	180	0.98	2100	54.6	268
